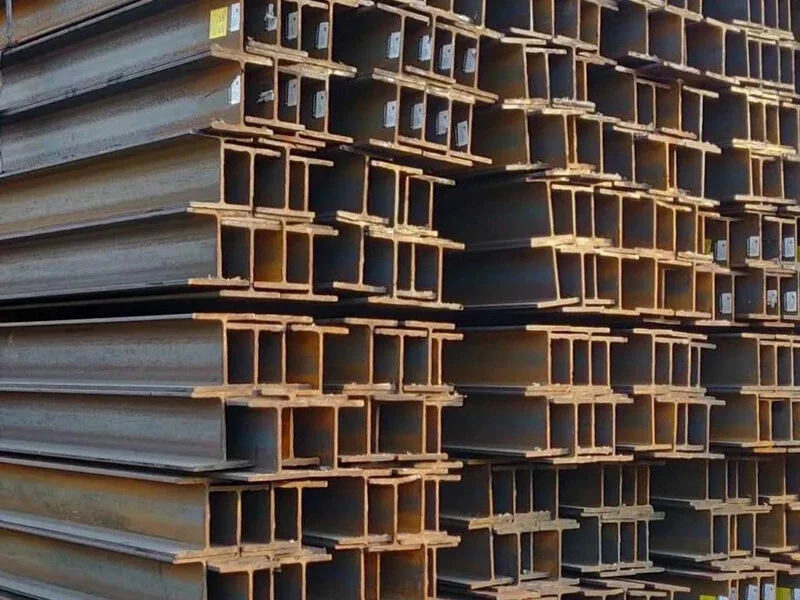

20Mn / 1022 / SWRCH22K / C22(1.0402) Carbon Steel H-shaped

Carbon steel, is an iron-carbon alloy with an internal carbon content of nearly 2%. It can be used as a general engineering structure and ordinary mechanical parts, with complex manufacturing shapes, high mechanical property requirements, and difficult to form by forging and other methods in the process.



Tel: +86 19854195895



E-mail: gangzheng004@sdgzsteel.com



WhatsApp: +86 19854195895

Inquire now

PARAMETER

Product name	Carbon Steel H-shaped
Material	Q195,Q215,Q235,Q345.SS400,st52,st37 etc.
Size	2020mm3mm-200200mm20mm or as requirement
Thickness	Equal:3mm-24mm or as requirement;unequal:3mm-18mm
Length	5.8m-12m, as customer's required
Surface	Oil, Black, Galvanized, Painted
Technique	Hot rolled/Cold Rolled/Galvanized
Application	Various architectural structures and engineering structures etc.
Delivery Time	7-15 Days
Payment terms	T/T (30%DEPOSIT)

CHEMICAL COMPOSITION

Grade	C	Si	Mn	P	S	Cu	Cr	Ni
Cor-ten A	0.12	0.25-0.75	0.20-0.50	0.01-0.2	0.03	0.25-0.55	0.5-1.25	0.65
Cor-ten B	0.16	0.3-0.5	0.8-1.25	0.03	0.03	0.25-0.40	0.4-0.65	≤0.4
SPA-H	0.12	0.2-0.75	0.60	0.07-0.15	0.035	0.25-0.55	0.3-1.25	0.65
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50	0.07-0.15	0.040	0.25-0.55	0.3-1.25	0.65
Q235NH	0.13	0.10-0.40	0.20-0.60	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q295NH	0.15	0.10-0.50	0.30-1.00	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q355NH	0.16	0.5	0.50-1.50	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q415NH	0.12	0.65	1.10	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q460NH	0.12	0.65	1.50	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q500NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q550NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q265GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.2-0.45	0.30-0.65	0.25-0.50
Q295GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.50
Q310GNH	0.12	0.25-0.75	0.20-0.50	0.07-0.12	0.020	0.25-0.55	0.30-1.25	0.65
Q355GNH	0.12	0.20-0.75	1.00	0.07-0.15	0.020	0.25-0.55	0.30-1.25	0.65
Q345GNHL	0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.035	0.25-0.55	0.30-0.65	0.65
Q295GQR2	0.12	0.10-0.40	0.20-0.50	0.06-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.5
Q295GQR3	0.12	0.20-0.40	0.25-0.55	0.06-0.12	0.020	0.25-0.50	---	---
Q345NQR2	0.12	0.25-0.75	0.20-0.50	0.06-0.12	0.020	0.25-0.50	0.3-1.25	0.12-0.65
Q345NQR3	0.12	0.20-0.50	0.25-0.70	0.06-0.12	0.020	0.25-0.50	---	---
Q400NQR1	0.12	0.75	1.10	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q450NQR1	0.12	0.75	1.50	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q500NQR1	0.12	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q550NQR1	0.16	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.65

MECHANICAL PROPERTIES

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3

PRODUCT DISPLAY
